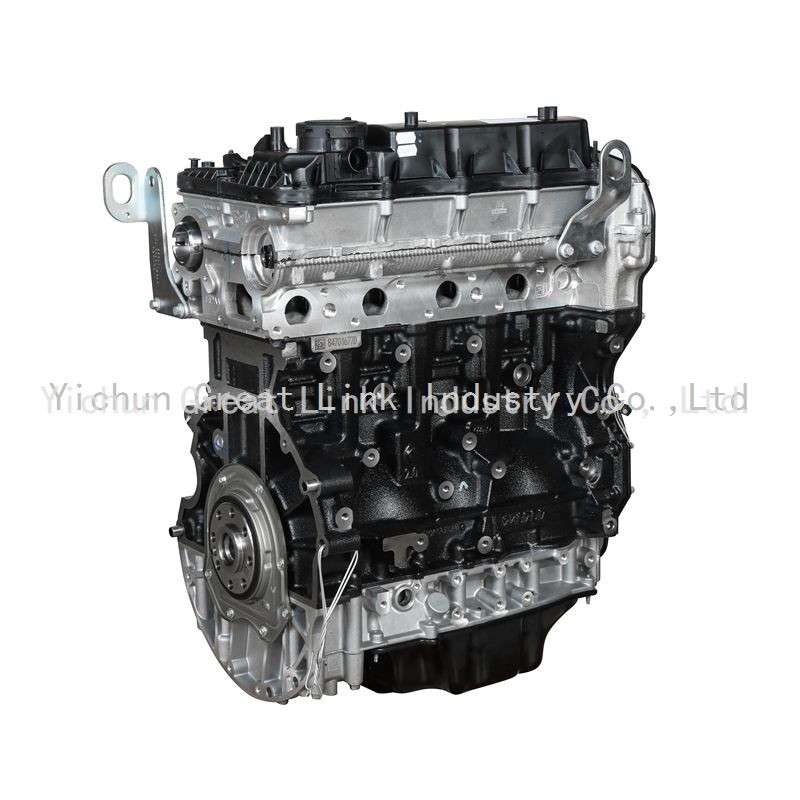

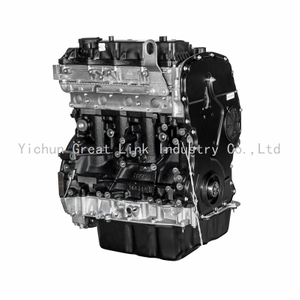

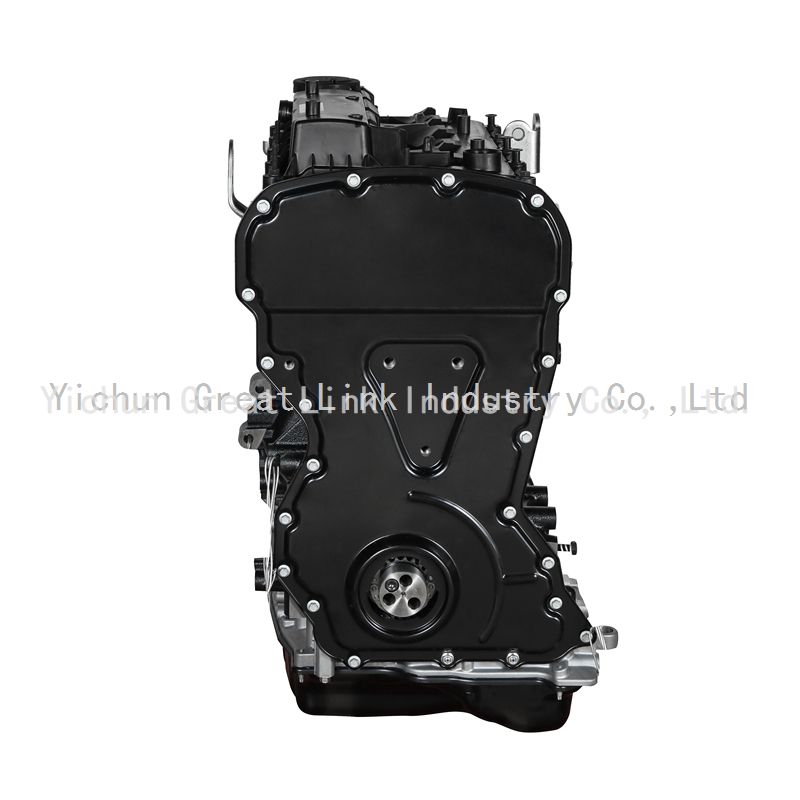

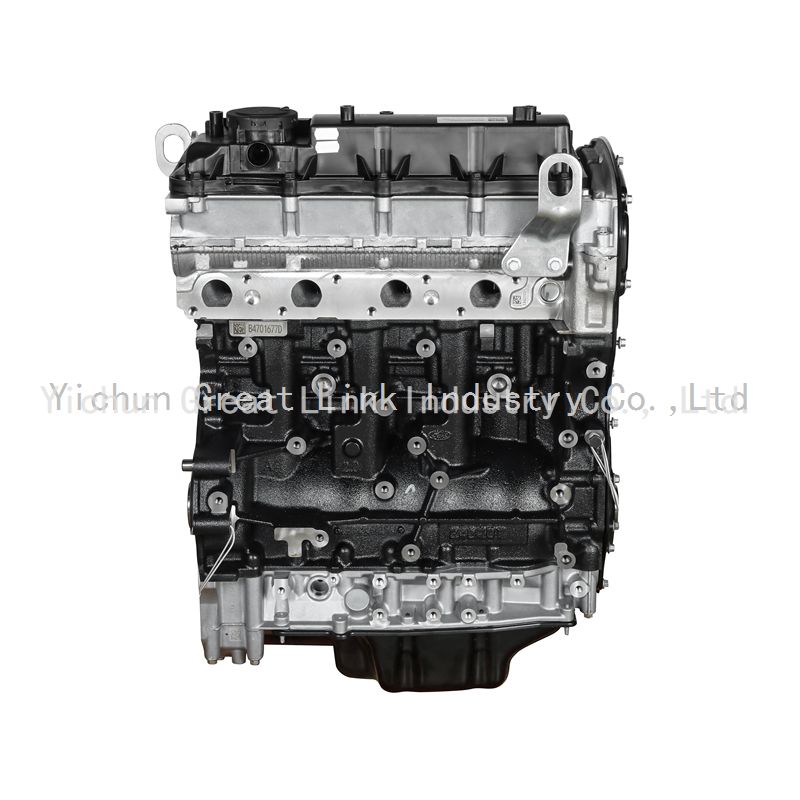

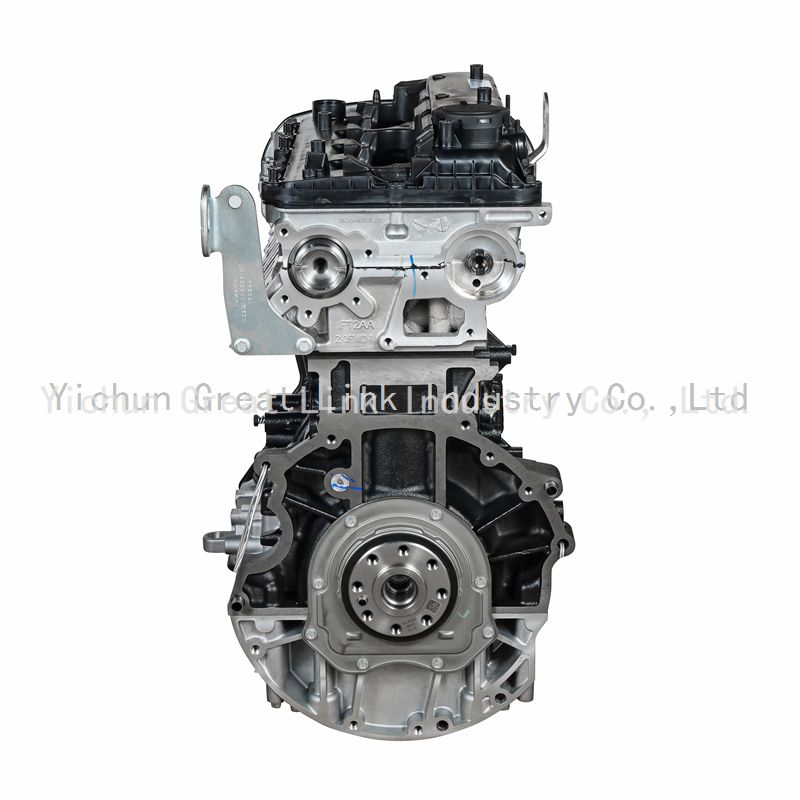

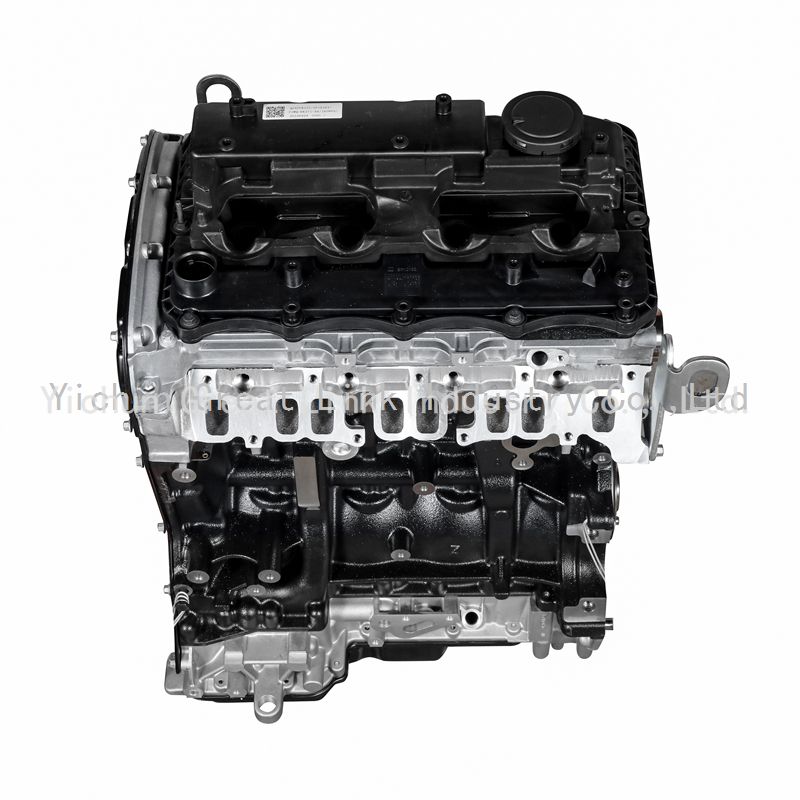

Puma ENGINE For FORD TRANSIT MK7 2.2 FWD EURO 5 TDCI DURATORQ P8FA P8FB CYFA CYFB CYFC CYFD Engine Assembly Fit for Citroen Relay Peugeot Boxer 114 KW 154 Hp 385 Nm DRFE DRFF DRFG DRR5 DRRA

Basic Specifications
It is a four - cylinder in - line engine with a displacement of 2198 cc. The cylinder block is made of cast iron, featuring cast - in cylinder liners and a double - walled structure for high strength. The cylinder head is an aluminum composite structure. The engine has two camshafts and 16 valves, with a compression ratio of 17.5.
Power Output
Different versions of the engine have varying power outputs. For example, some versions can output 85 - 130 hp at 3500 rpm. There is also a high - performance version that can deliver 175 hp at 3500 rpm, with a continuous torque of 400 N·m when the engine speed reaches 1750 rpm, and an instantaneous overpressure torque of up to 420 N·m.
Technological Features
Fuel Injection System: It adopts Bosch's third - generation common - rail fuel injection system, using piezoelectric 7 - hole fuel injectors with multiple fuel injection functions. The maximum injection pressure can reach 1800 bar, which can realize 5 fuel injections per combustion stroke, and the injection timing is automatically controlled according to engine speed, load, engine temperature, and intake temperature.
