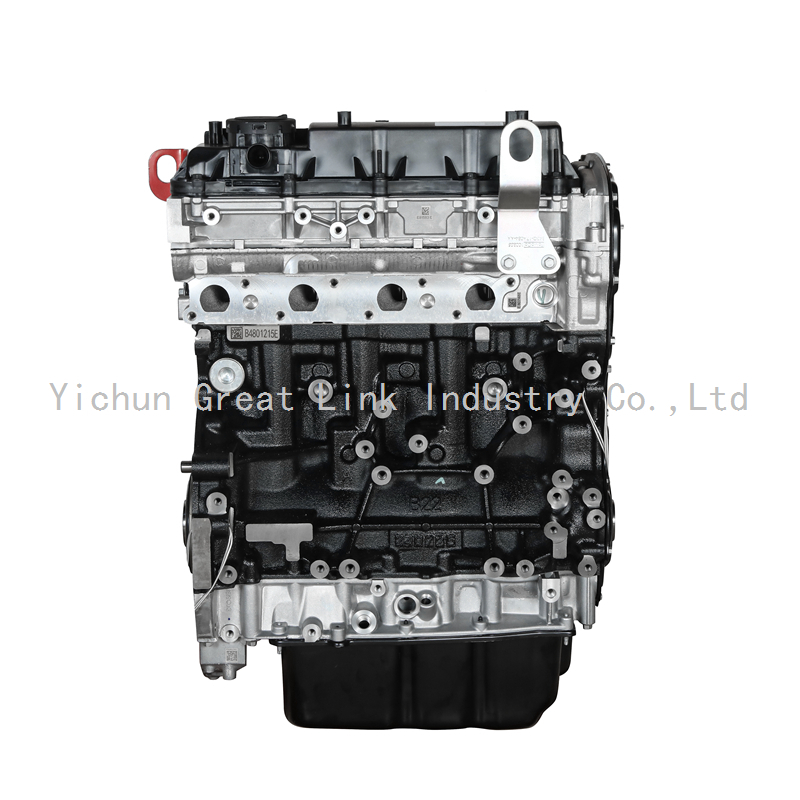

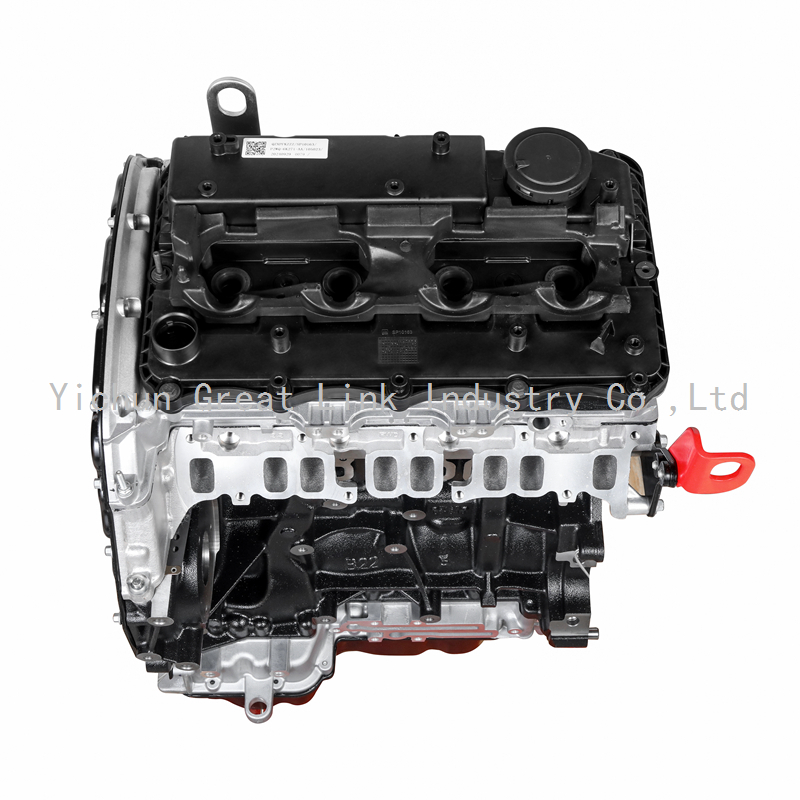

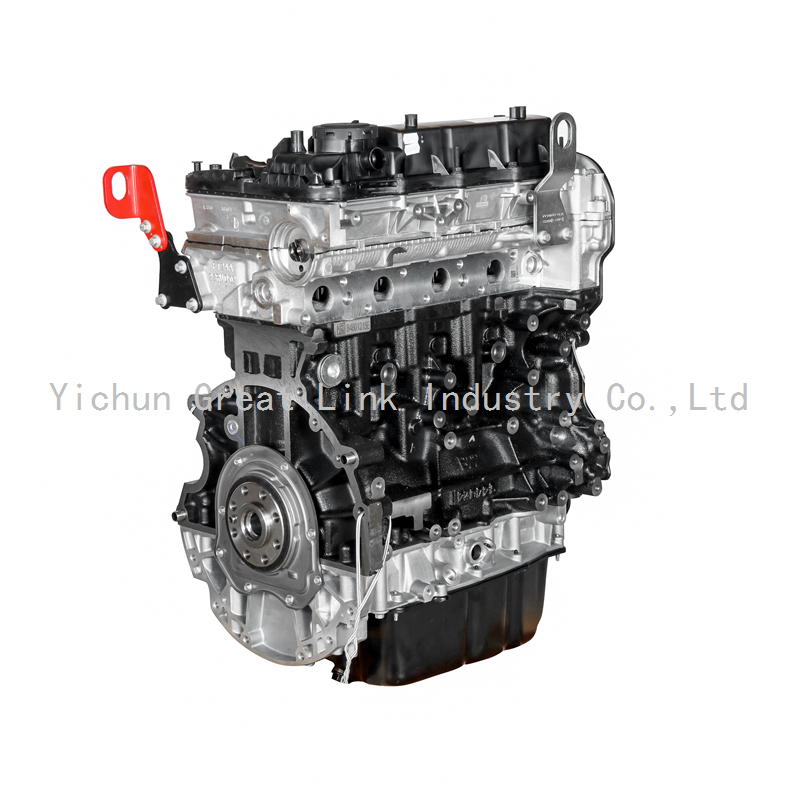

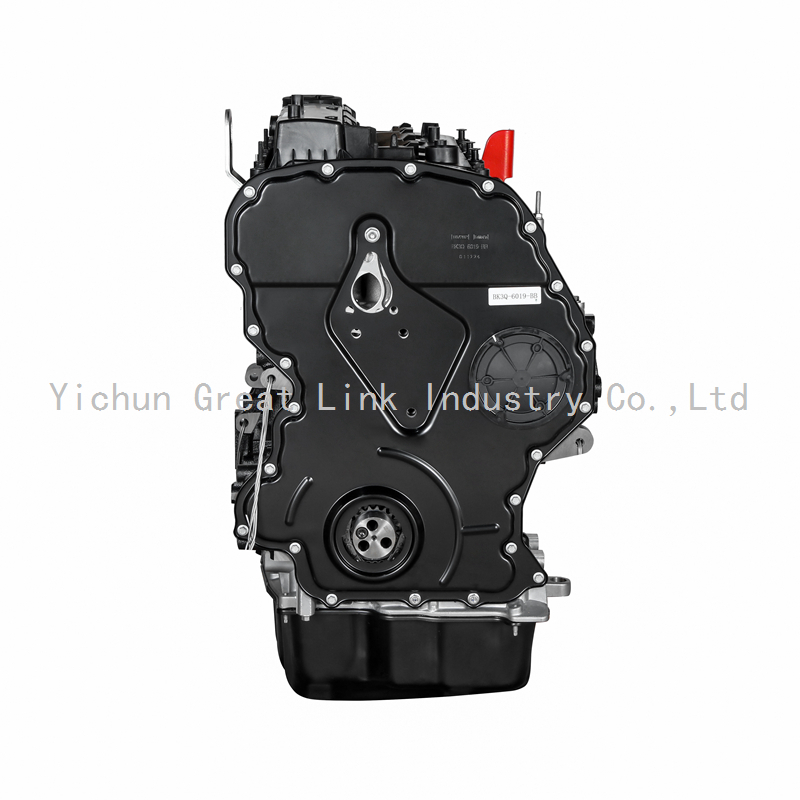

Engine Long Block for Ford Transit Citroen Jumper Peugeot Boxer Fiat 2.2HDI CVRA EUR5 FORD TRANSIT 2.2 EURO 5 RWD MK7 MK8 Puma Engine Duratorq 2.2 TDCi

Engine Long Block for Ford Transit Citroen Jumper Peugeot Boxer Fiat 2.2HDI CVRA EUR5 FORD TRANSIT 2.2 EURO 5 RWD MK7 MK8The Duratorq 2.2 TDCi is a family of Ford turbodiesel engines, with the most common iteration being a 2.2-liter (2198 cc) unit known as the Puma, used in vehicles like the Ford Transit, Ranger, and Land Rover Defender. The engine comes in various power outputs, such as 92 kW (125 PS) and 110 kW (150 PS), featuring common-rail diesel technology with piezo injectors for precise fuel delivery, resulting in improved power, torque, and fuel efficiency.
Key Characteristics
Engine Type: Turbodiesel with Common-Rail Direct Injection (TDCi)
Capacity: 2.2 liters (2,198 cm³)
Common Name: Puma
Technology: Features a common-rail injection system using piezo injectors for high precision and efficiency, along with a variable flow oil pump.
Common Applications
Ford: Ford Ranger, Ford Transit
Land Rover: Land Rover Defender
Jaguar: Jaguar X-Type
Mazda: Mazda BT-50
Peugeot/Citroën: Peugeot Boxer, Citroën Relay
Power Outputs
The 2.2L Duratorq TDCi engine was offered in several power levels, with common examples including:
92 kW (125 PS) @ 3700 rpm, 320 Nm of torque
110 kW (150 PS) @ 3700 rpm, 375 Nm of torque
118 kW (160 PS)
Other variants exist, such as 88 kW (120 PS) and 96 kW (130 PS).
Performance Aspects
Fuel Injection:
A sophisticated 1800 bar common-rail system with piezo injectors for precise control over fuel delivery.
Efficiency:
The precise injection system and variable flow oil pump contribute to improved fuel economy and reduced emissions.
Refinement:
Tuned internal flow and calibration provide a smooth and refined engine performance.
