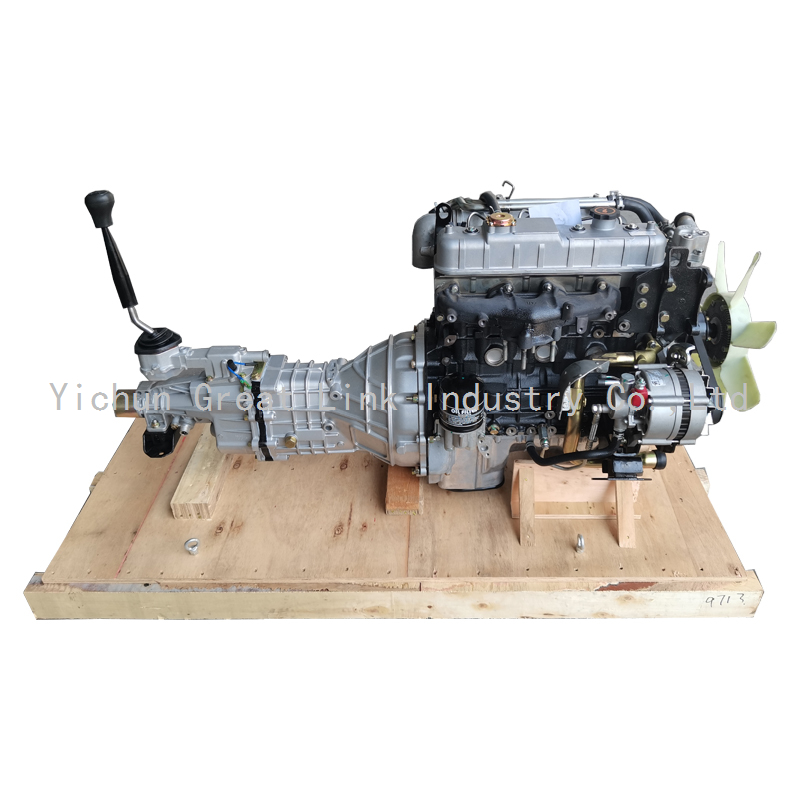

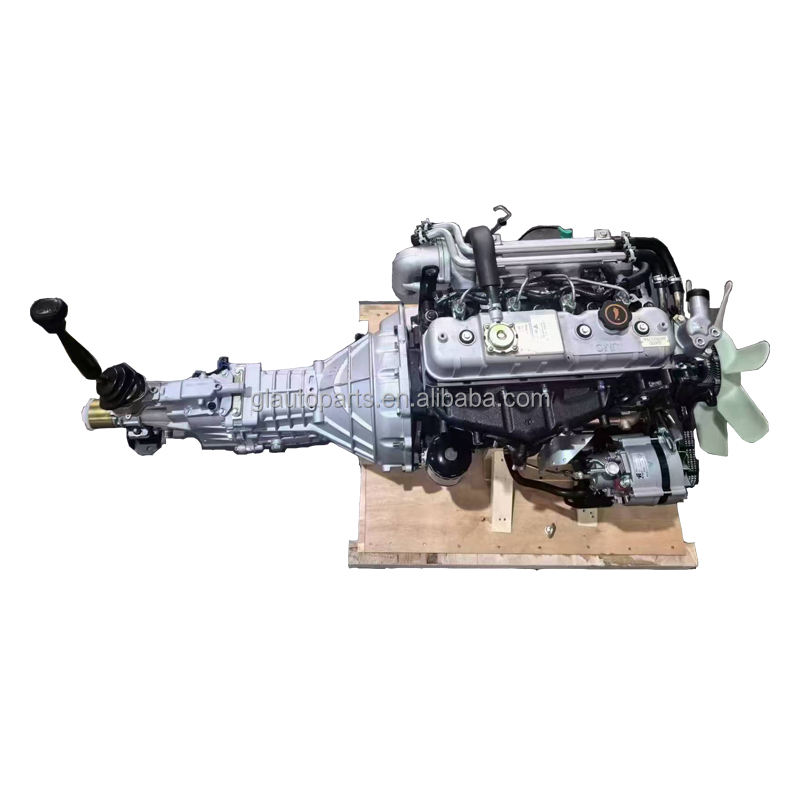

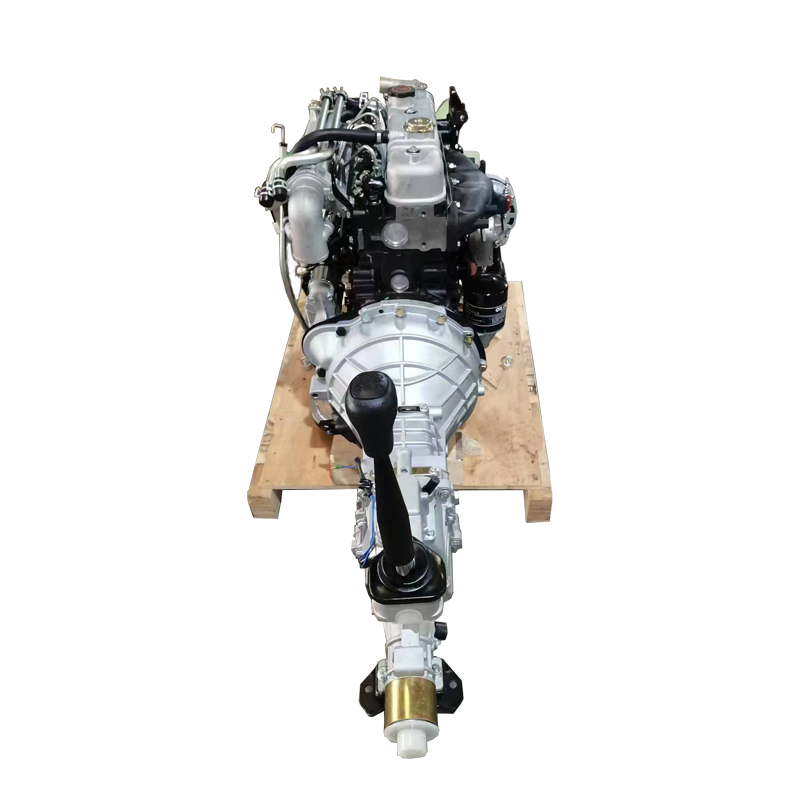

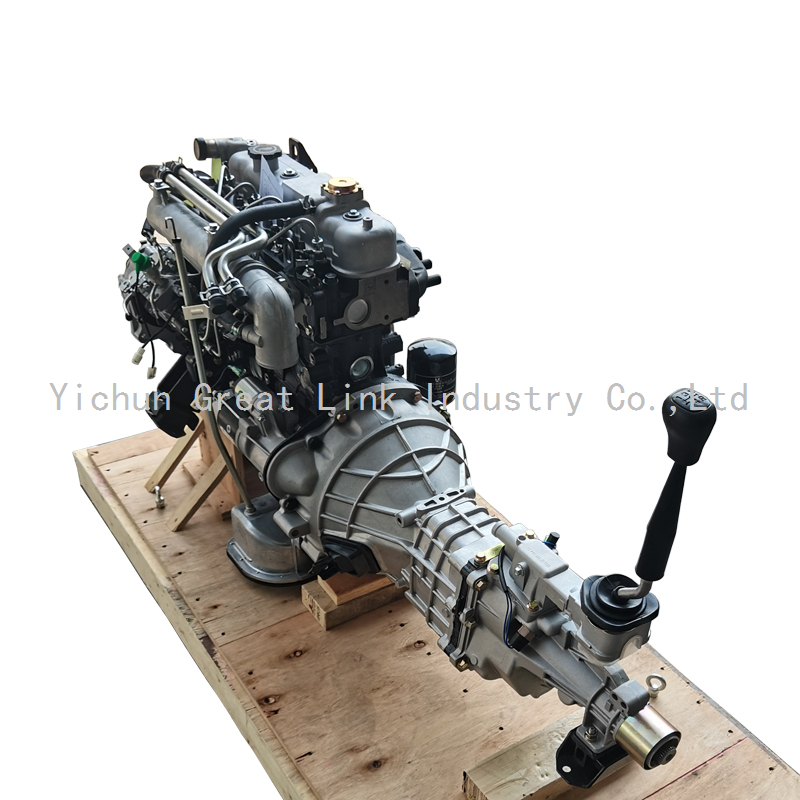

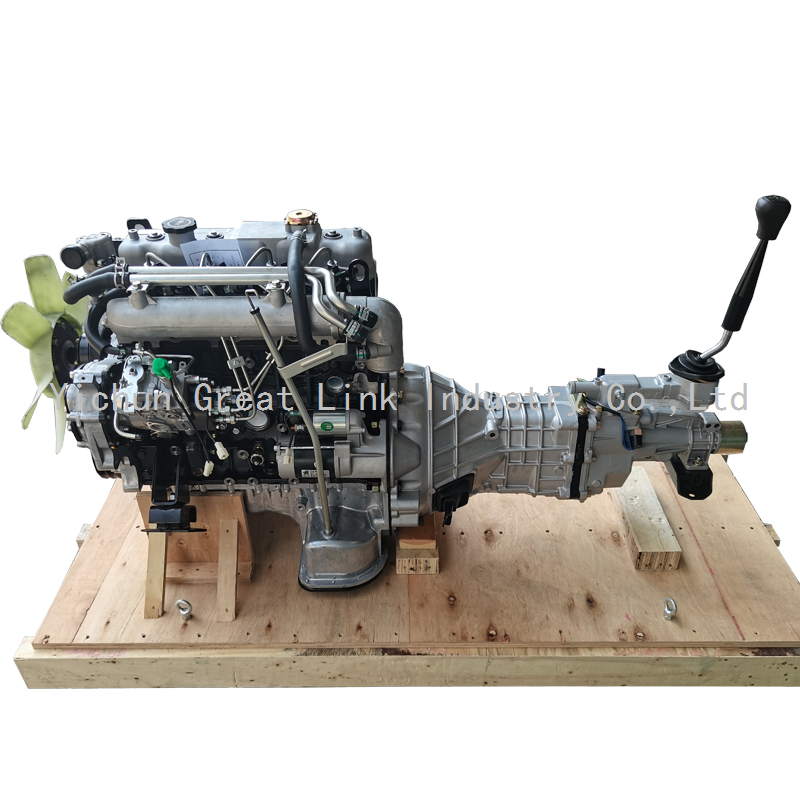

New 4JB1 Non-Turbo Isuzu Engine 2.8L Engine Assembly with Transmission Gearbox for Pickup 57KW 75HP

New 4JB1 Non-Turbo Isuzu Engine 2.8L Engine Assembly with Transmission Gearbox for Pickup 57KW 75HP

New 4JB1 Non-Turbo Isuzu Engine 2.8L Engine Assembly with Transmission for Truck Pickup 57KW 75HP

Model:
4JB1 57KW
Brand:
JMC


Availability:



Inquire Add to Basket

Product Description

Main Data and Technical Parameter
Model	JX493Q1
Application	Vehicle
Number of Cylinders-Bore*Stroke	4—93mm×102mm
Fuel supply	Direct Injection
Displacement	2.771 Liter
Intake Type	Natural Intake
Idle Speed	750r/min
Rated output Power/ Rev	57kW/3600r/min 75HP
Max. Torque/Speed	172Nm/2000r/min
Max. Speed	4200r/min
Min. fuel Consumption	224g/kWh
Cold Starting	－20℃
Starting Motor	1 2V/2.8kW
Generator	12V 80A
Oil Capacity	4．5 ~ 5 liter
Exhaust Temperature	≤600℃
Fuel Injection Pump	VE Type
Fuel Injection	P type 4 holes
Valve Gap	0.40 ( inlet valve and exhaust valve, cooling)
Inlet Valve Open	24.5℃A before top dead center
Inlet Valve Closing	55.5℃A after bottom dead center
ExhaustValve Open	54℃A before bottom dead center
Exhaust Valve	26℃A after top dead center
Closing	26℃A after top dead center
Injection Beginning Angle	16℃A/0.5
Net Weight	224kg
Size (LWH) mm	136×611×681mm

New 4JB1 Non-Turbo Isuzu Engine 2.8L Engine Assembly with Transmission gearbox for Pickup oem wholesale 4JB1 Diesel Engine supplier isuzu 4jb1 diesel engine 4jb1 engine complete diesel engine 4jb1 4jb1 engine turbo 4jb1t diesel isuzu 4jb1 transmission gearbox 4jb1 gearbox isuzu 4jb1 transmission 4jb1 and gearbox isuzu engine diesel
