You are here: Home » Products » Engine » 7C1Q-6006-FA for FORD TRANSIT V348 2.4L PUMA Duratorq 2.4 Diesel Auto Engine Long Block Du4d24 115Ps 140Ps Engine for Land Rover Defender 2.4 Td4 DT244 Puma 244DT LR013403

PRODUCT GROUP

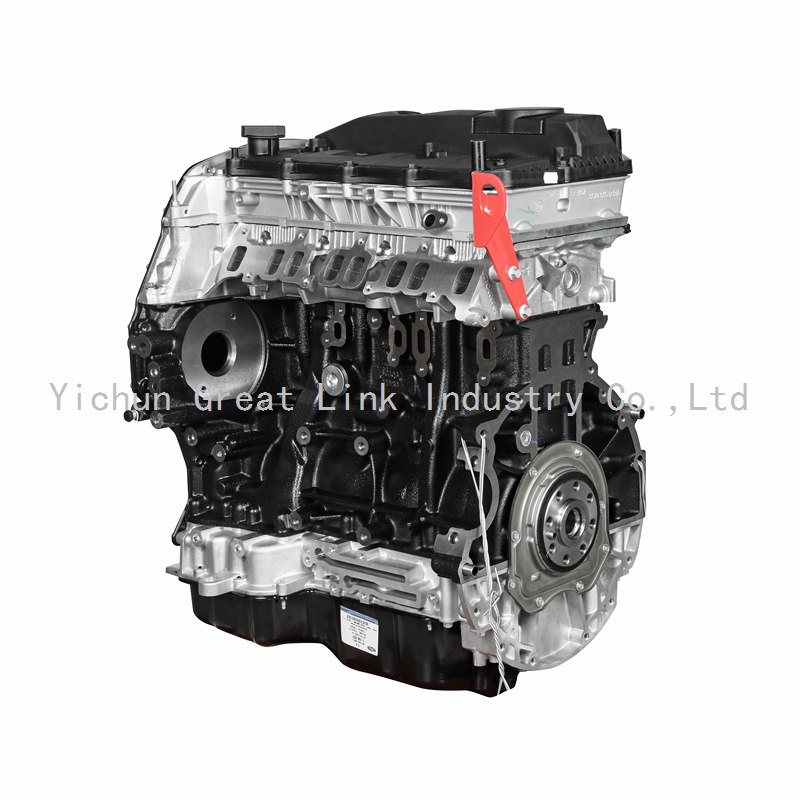

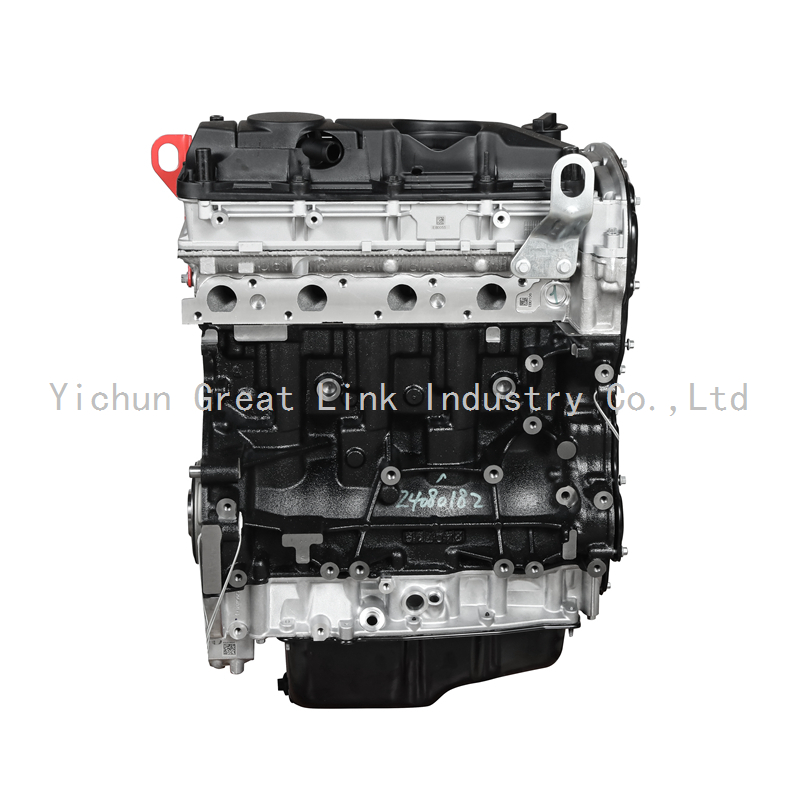

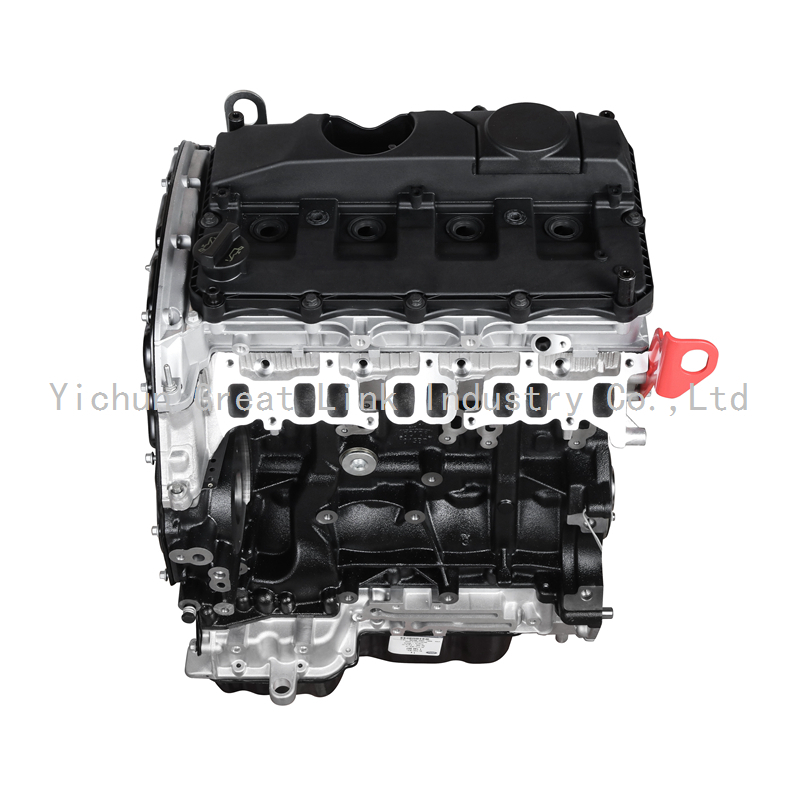

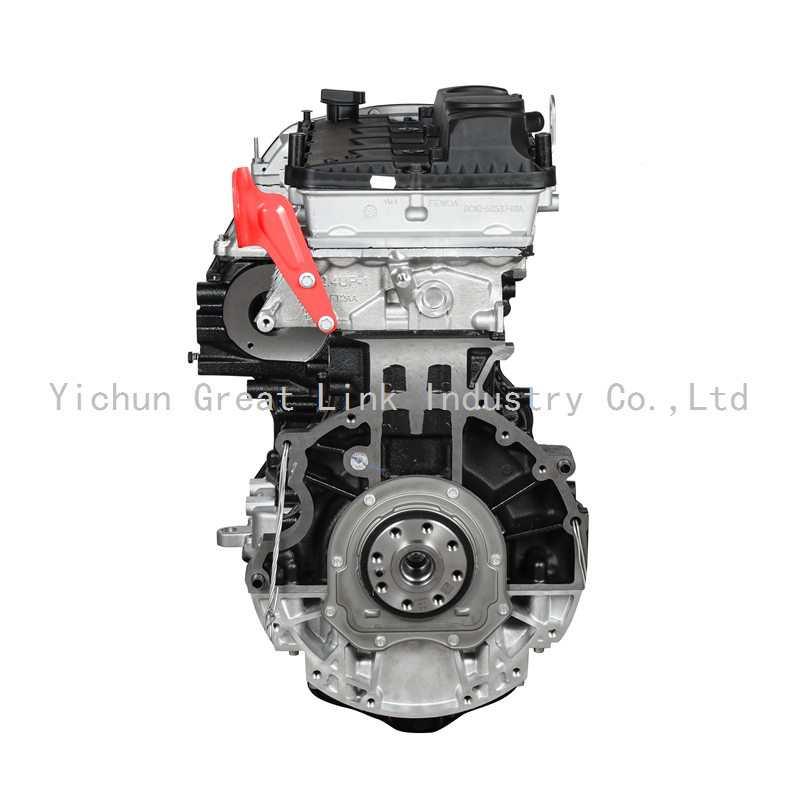

7C1Q-6006-FA for FORD TRANSIT V348 2.4L PUMA Duratorq 2.4 Diesel Auto Engine Long Block Du4d24 115Ps 140Ps Engine for Land Rover Defender 2.4 Td4 DT244 Puma 244DT LR013403

7C1Q-6006-FA for FORD TRANSIT V348 2.4L PUMA Duratorq 2.4 Diesel Auto Engine Long Block Du4d24 115Ps 140Ps Engine for Land Rover Defender 2.4 Td4 DT244 Puma 244DT LR013403

The "Puma 2.4 engine" refers to a 2.4-liter, 4-cylinder, diesel (TD4) engine, primarily used in the Land Rover Defender from roughly 2007 to 2012. It's known for its durability and off-road capability, though it can be prone to piston cracking if pushed too hard. Available as both new and reconditioned units, it's a common and reliable powertrain for Defender owners, though some users may consider performance tuning or upgrades to enhance its power output.
Key Characteristics

Manufacturer: Land Rover / Ford
Fuel Type: Diesel (TDCI)
Cylinders: 4
Application: Primarily Land Rover Defender 90 and 110 models
Standard Output: Approximately 122bhp

Model:
DURATORQ4D24
Brand:
GL


Availability:



Inquire Add to Basket

Product Description

Main Data and Technical Parameter
Model	DU4D24
Application	Vehicle
Number of Cylinders-Bore*Stroke	4—mm×mm
Fuel supply	electronic injection
Displacement	2.4 Liter
Intake Type	Inter-cool Turbo
Idle Speed	800r/min
Rated output Power/ Rev	90kW/3200r/min
Max. Torque/Speed	3200/1600-2200r/m
Max. Speed	4200r/min
Min. fuel Consumption	205g/kWh
Cold Starting	－20℃
Starting Motor	1 2V/2.8kW
Generator	12V 80A
Oil Capacity	5.6 liter
Exhaust Temperature	≤600℃
Fuel Injection Pump	HPCR
Valve Gap	0.40 ( inlet valve and exhaust valve, cooling)
Inlet Valve Open	24.5℃A before top dead center
Inlet Valve Closing	55.5℃A after bottom dead center
ExhaustValve Open	54℃A before bottom dead center
Exhaust Valve Closing	26℃A after top dead center
Injection Beginning Angle	electronic control
Net Weight	240kg
Size (LWH) mm	707×580×779

The DU4D24 is a2.4L diesel enginefound in vehicles like the JMC Transit and Ford Transit, often associated with the Yuchai 4D24 or a similar variant. It is available as a replacement long block or various other engine components for parts replacement and is sometimes referred to as JX4D24 or by the Ford part number 7C1Q-6006-FA.

Here's a breakdown of key aspects:

Vehicle Applications:
The engine is designed for use in commercial vehicles like the Ford Transit and JMC Transit buses. Land Rover Defender 90 and 110 models.

Engine for Land Rover Defender 2.4 Td4 DT244 Puma 244DT LR013403 Du4d24 115Ps 140Ps Engine Puma Engine 7C1Q-6006-FA 7C1Q-6006-FA LR013403 LR055432 LR004270 LR006853 LR008028 LR006853 LR010278 LR013403 LR016810 LR055 Engine block and cylinder head for reservation Ford 2.4 diesel MK7 MK8 Duratorq 2.4 TDCi engine Engine for Ford Transit 2.4L 115Ps 140Ps
