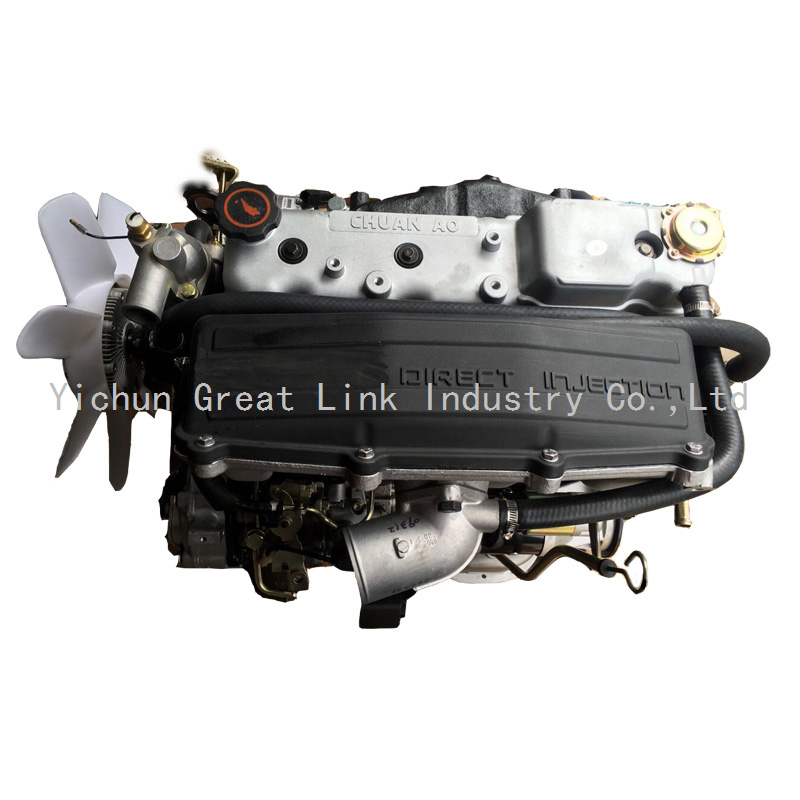

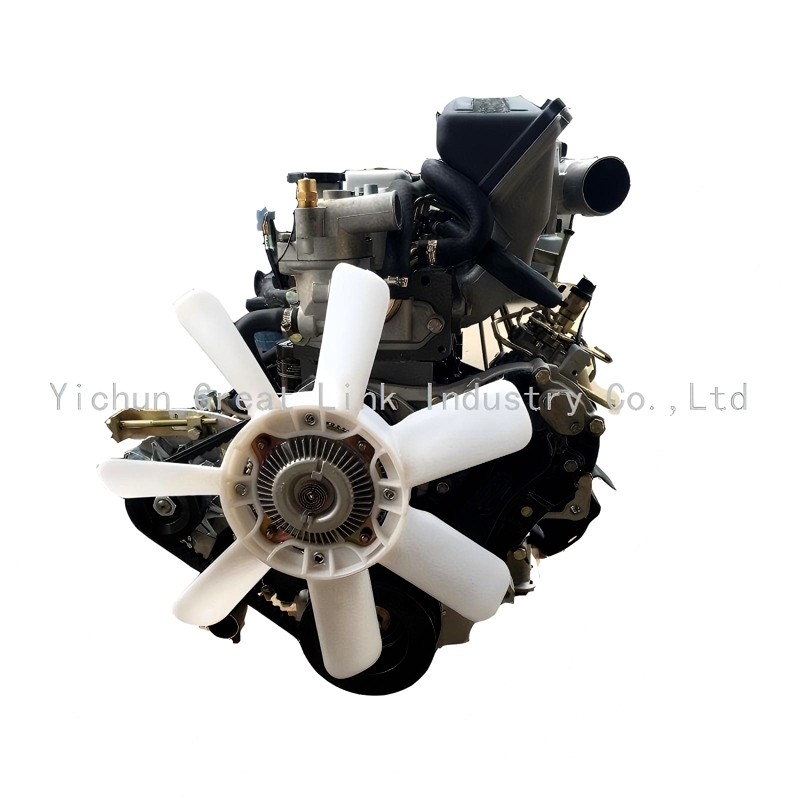

New 2800CC 4JB1 Diesel Engine Assembly 2.8L Complete Assembly Assy 57KW 75HP 4-Stroke Water-Cooled

New 2800CC 4JB1 Diesel Engine Assembly 2.8L Complete Assembly Assy 57KW 75HP 4-Stroke Water-Cooled

New 2800CC 4JB1 Non-Turbo Diesel Engine Assembly 2.8L Complete Assembly Assy 57KW 80HP 4-Stroke Water-Cooled

Model:
4JB1 57KW


Availability:



Inquire Add to Basket

Product Description

Main Data and Technical Parameter
Model	4JB1 57KW
Application	Vehicle
Number of Cylinders-Bore*Stroke	4—93mm×102mm
Fuel supply	Direct Injection
Displacement	2.771 Liter
Intake Type	Natural Intake
Idle Speed	750r/min
Rated output Power/ Rev	57kW/3600r/min 75HP
Max. Torque/Speed	172Nm/2000r/min
Max. Speed	4200r/min
Min. fuel Consumption	224g/kWh
Cold Starting	－20℃
Starting Motor	1 2V/2.8kW
Generator	12V 80A
Oil Capacity	4．5 ~ 5 liter
Exhaust Temperature	≤600℃
Fuel Injection Pump	VE Type
Fuel Injection	P type 4 holes
Valve Gap	0.40 ( inlet valve and exhaust valve, cooling)
Inlet Valve Open	24.5℃A before top dead center
Inlet Valve Closing	55.5℃A after bottom dead center
ExhaustValve Open	54℃A before bottom dead center
Exhaust Valve	26℃A after top dead center
Closing	26℃A after top dead center
Injection Beginning Angle	16℃A/0.5
Net Weight	224kg
Size (LWH) mm	737×611×681mm
